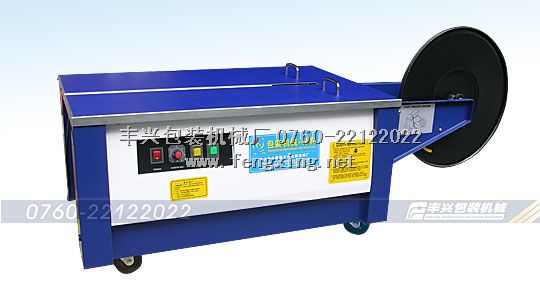

Name:Universal semi-automatic packing machine

Model: Low circuit board

Type:Strapping Packing Machine

Order Hotline:0760-22122022
Enjoy par accessories and maintenance services
Product Details


  • The joint is short, no metal button, in compliance with international environmental requirements;


  • Packing speed, high efficiency, each beat a PP with only 1.5 seconds;


  • Quick heating system, 1V low voltage, good safety, instant heating, boot 5 seconds after entering the best packaged state;


  • Automatic stop device, power saving and practical. More than 60 seconds no longer operate, the motor will automatically shut down, enter the standby state;

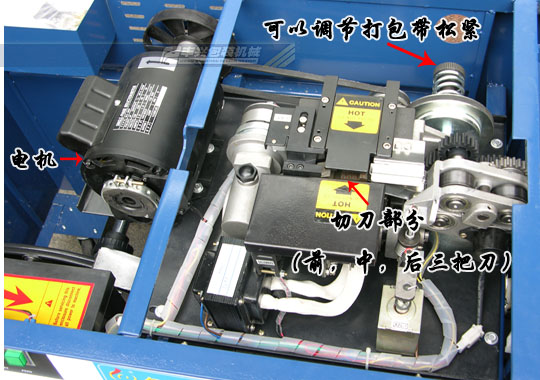

  • Electromagnetic clutch, quick and smooth, shaft type transmission, high speed, low noise, little abrasion, low failure rate;


  • A new circuit design, the insertion of integrated circuit board to control the whole packing action and perm temperature and to separate the part of the circuit, circuit board inspection and maintenance convenient.


  • Design of a new type of electric steel sheet, long life, fever quickly, from ordinary perm easy variant and short circuit faults;


  • Packing belt with 6-15mm width can be used to ensure the integrity and consistency of the adhesive effect;


  • With a quick adjustment knob, the size of the binding force can be arbitrarily adjusted quite convenient.





The strapping machine products faster, tied a belt is just about 1.5 seconds, reducing the labor intensity of workers, improves the work efficiency, large binding force and wide adjustment range, stable and reliable quality, convenient operation and maintenance; hot knife rapid heating, 5 seconds into the best state of packing, after the completion of the bale, such as 1 minute does not work motor automatic stop enter the standby state.





Specification Parameter

Model: low platform

Package weight: less than 100kg

Power supply: 50Hz 220V

Power: 280W

Bundling belt width: 6 ~ 15mm

Minimum packing: 60mm*30 mm

The maximum packing material: no limit

Packing speed: 1.5 seconds / Channel

Maximum binding force: 60KG

Outline dimension: 1490mm*565mm*460mm


Remarks:

This machine is the cover plate of galvanized plate;

Ordinary type electric motor with contact;

Movement parts quality is qualified.
