Home > Fengxing Products > DL-500E electromagnetic induction sealing machine

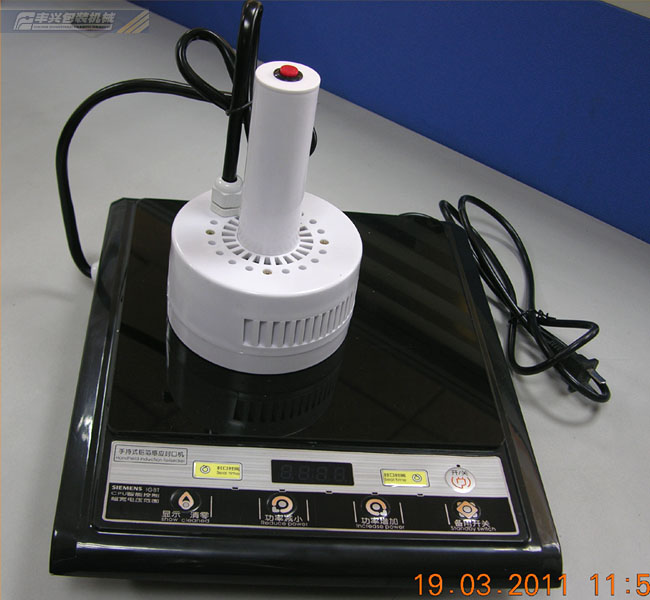

Name:DL-500E electromagnetic induction sealing machine

Model: DL-500E

Type:Film Sealing Machine

Order Hotline:0760-22122022
Enjoy par accessories and maintenance services
TAG: 封口机
Product Details


  • Electromagnetic induction sealing machine, a non-contact sealing process, the heat generated by electromagnetic induction moment, namely fusion of aluminum foil on the bottle, the process for most avoid being contaminated items of storage, the effective protection products, to avoid overturned splashing, squeeze the unexpected overflow.

  • Widely used in pharmaceutical, food, chemical, oil, pesticides, cosmetics, hotels, travel goods, light industry and other industries to seal the container for aluminum foil.

  • Container material is plastic bottles, glass bottles and other non-metallic materials, such as: PET, PE, PP, PVC, ABS, etc.







Performance characteristics

1 imported single chip control, SIEMENS IGBT power tube, high efficiency, low power consumption.

2 automatic counting function, effectively control the number of sealing.

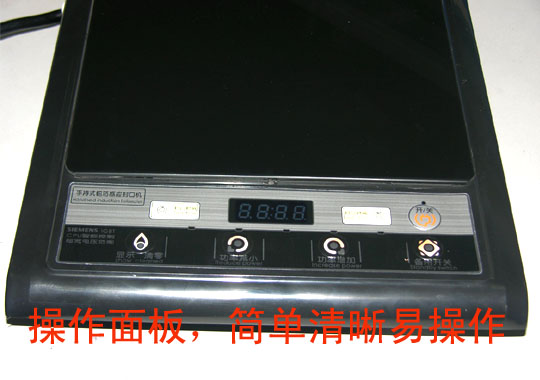

3 the structure design is reasonable, the touch panel operation is convenient, simple.

4 automatic heating, over-voltage, over current protection function.

5 ultra wide voltage range.

6 stable performance and long service life.

7 automatic shutdown function, no operation within 15 minutes, the machine automatically shut down.








This series of products use safe, frequency range between 25-100KHz, no harm to the human body, equipment, with over flow, overheating, overload and other protective devices.

This series of products are small and light, easy to operate, short bonding time, fast speed, strong fastness, stable performance, suitable for small batch production and laboratory operation.



Specification Parameter

Model: DL-500E

Source: no

Power Supply:

Power: 500W

Speed: 35mm

Sealing time: 0.5 seconds

Film width: no

Delivery mode: no

Heat sealing number: no

Outline dimension: 330x325x130ml

Operating frequency: 100KHz + 5%

Sealing length: -

Time adjustment: two bit LED

Digital display: 0.1-2.9 seconds

Working standard: interval time, automatic control (about 3 seconds)

Sealing width: -

Sealing temperature: 0-250 degrees C (adjustable)

Printing words: no
